Eighteeth FinScan F350 Dental Cone-Beam Computed Tomography (CBCT) System

(0) 0 Reviews 0 Orders 0 Wish listed

1,600,000EGP

Quantity :

Total price :

(Tax : )

Overview
Reviews

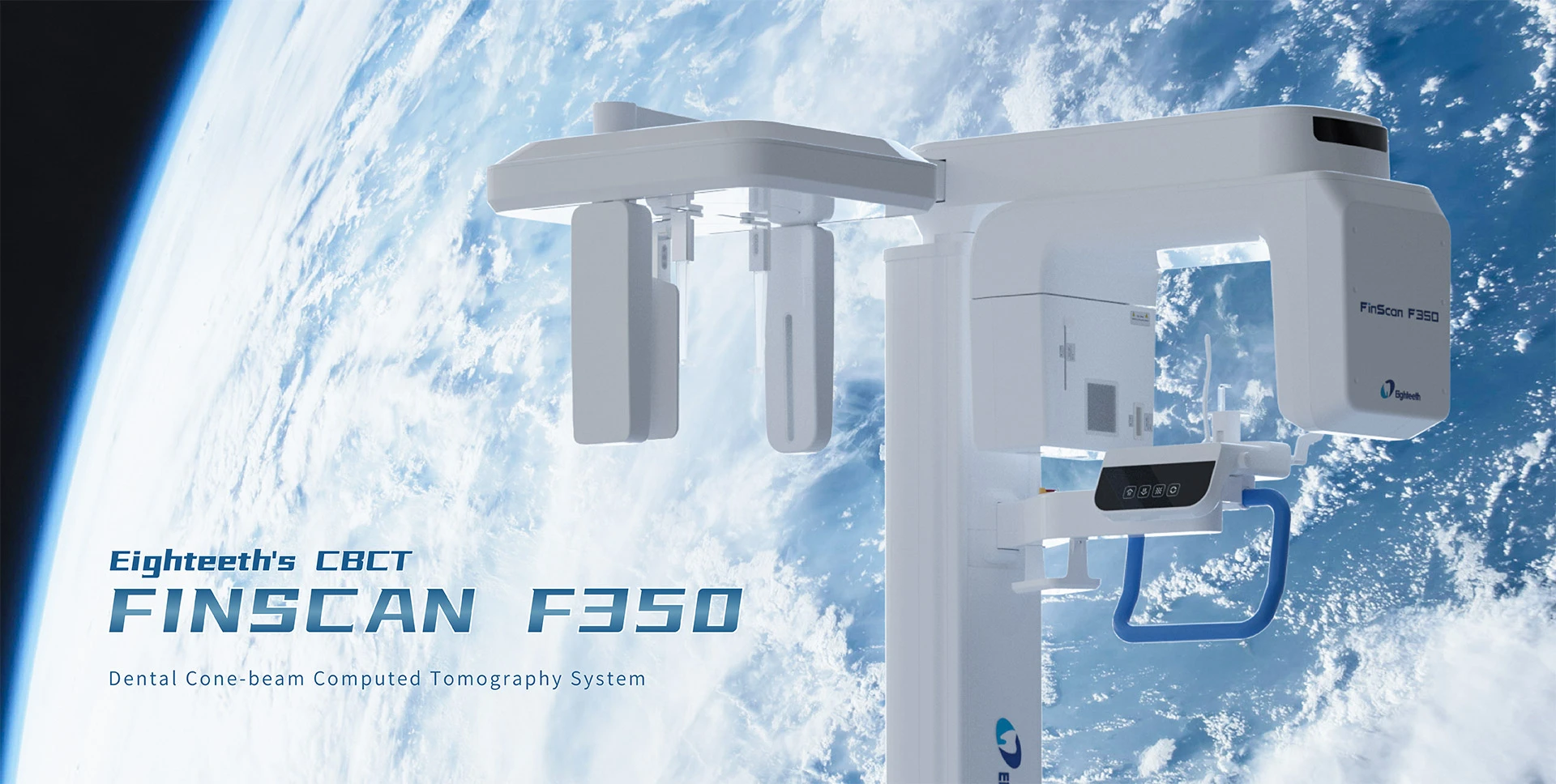

The Eighteeth FinScan F350 is an advanced 3-in-1 dental Cone-Beam Computed Tomography system engineered for high-precision 3D diagnostics, panoramic radiography, and cephalometric imaging. Equipped with a Japanese Canon X-ray tube and proprietary FinScan Metal Artifact Reduction (MAR) algorithms, it delivers crystal-clear diagnostic scans while minimizing interference from high-density materials.
Key Features & Benefits:

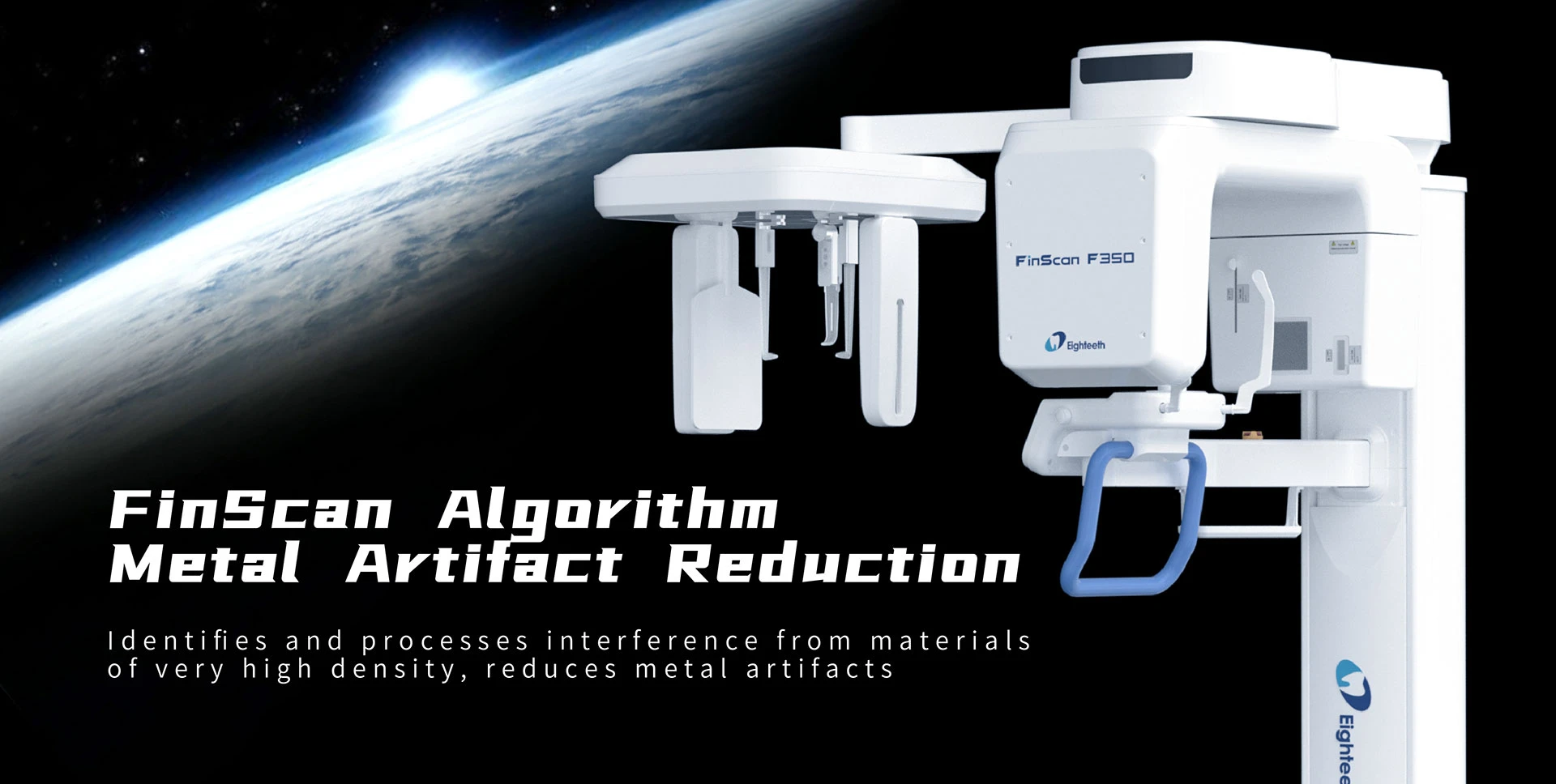

FinScan Algorithm Metal Artifact Reduction (MAR): Automatically identifies and processes interference from very high-density materials to significantly reduce metal artifacts in 3D scans.

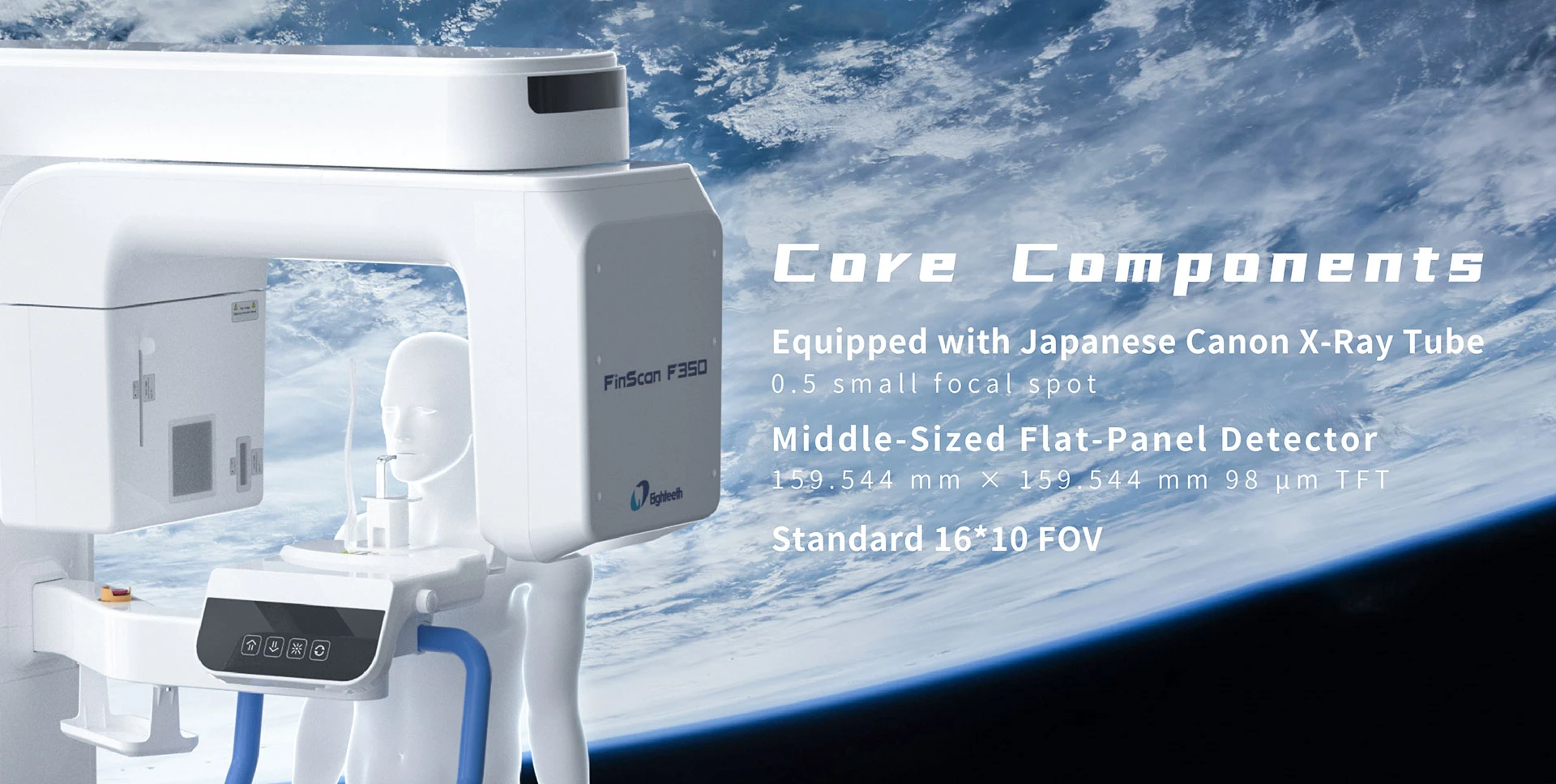

Core Imaging Components: Powered by a Japanese Canon X-ray tube featuring a fine 0.5 small focal spot, paired with a middle-sized flat-panel detector ( $159.544\text{ mm} \times 159.544\text{ mm}$ , $98\ \mu\text{m}$ TFT).
Versatile Field of View (FOV): Supports standard $16 \times 10\text{ cm}$ FOV alongside multiple flexible options ( $4 \times 4\text{ cm}$ , $8 \times 8\text{ cm}$ , and $16 \times 10\text{ cm}$ ).
Precision Patient Positioning: Features secure chin, temple, and forehead supports integrated with accurate laser positioning lights.

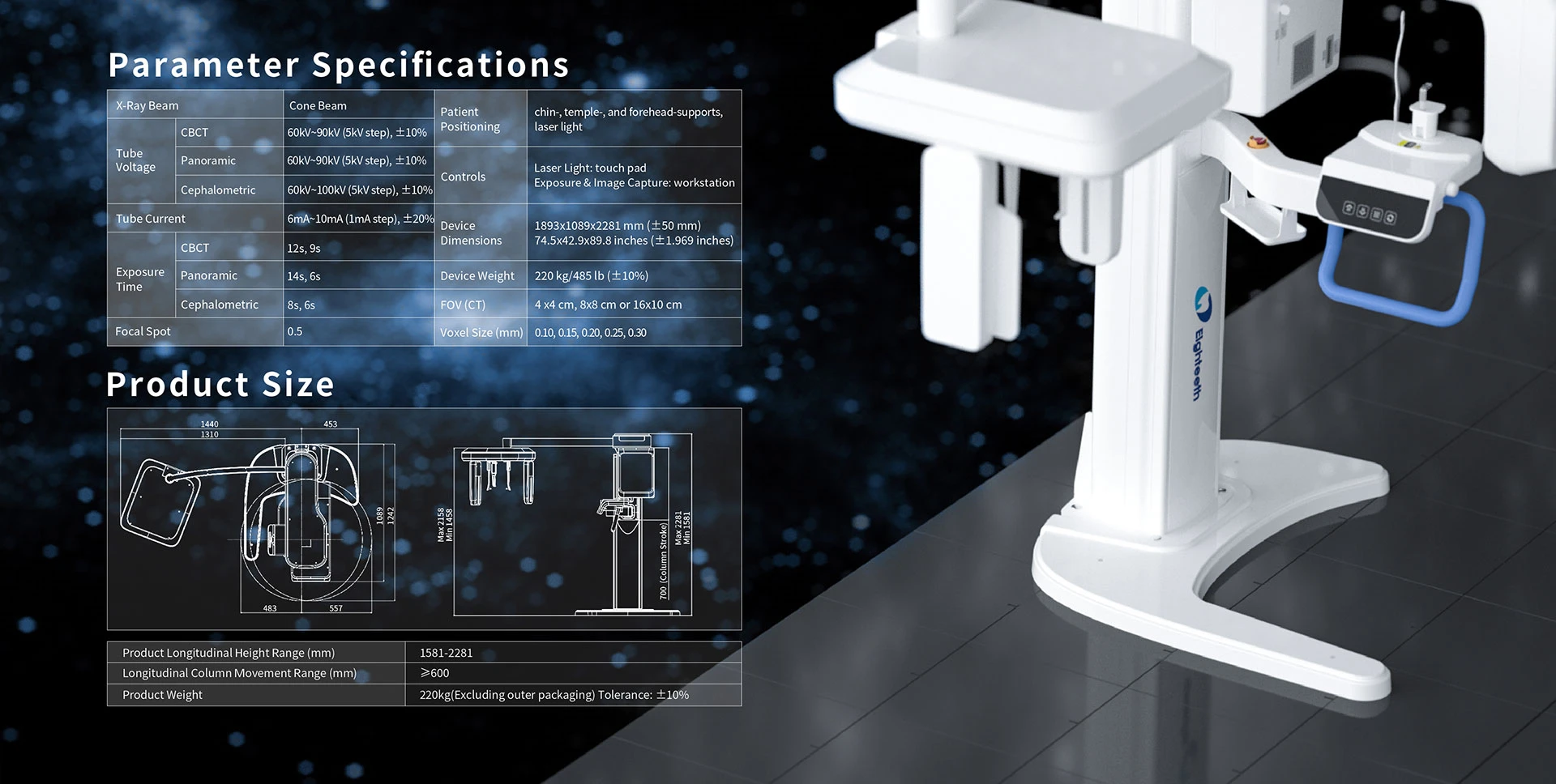

⚙️ Technical Specifications (Data Grid)

Technical Feature	Specification Detail
Product Name & Type	Eighteeth FinScan F350 CBCT Imaging System
Manufacturer	Eighteeth
X-Ray Tube & Focal Spot	Japanese Canon X-ray Tube with $0.5$ focal spot
Tube Voltage	CBCT: $60\text{kV}\sim 90\text{kV}$ ( $5\text{kV}$ step, $\pm 10\%$ ) Panoramic: $60\text{kV}\sim 90\text{kV}$ ( $5\text{kV}$ step, $\pm 10\%$ ) Cephalometric: $60\text{kV}\sim 100\text{kV}$ ( $5\text{kV}$ step, $\pm 10\%$ )
Tube Current	$6\text{mA}\sim 10\text{mA}$ ( $1\text{mA}$ step, $\pm 20\%$ )
Exposure Time	CBCT: $12\text{s}, 9\text{s}$ Panoramic: $14\text{s}, 6\text{s}$ Cephalometric: $8\text{s}, 6\text{s}$
FOV & Voxel Size	FOV options: $4 \times 4\text{ cm}$ , $8 \times 8\text{ cm}$ , $16 \times 10\text{ cm}$ Voxel Size: $0.10, 0.15, 0.20, 0.25, 0.30\text{ mm}$
Detector Specs	Middle-sized flat-panel detector ( $159.544\text{ mm} \times 159.544\text{ mm}$ , $98\ \mu\text{m}$ TFT)
Device Dimensions & Weight	$1893 \times 1089 \times 2281\text{ mm}$ ( $\pm 50\text{ mm}$ ) Weight: $220\text{ kg} / 485\text{ lbs}$ ( $\pm 10\%$ )
Clinical Application	3D maxillofacial diagnostics, implantology, endodontics, orthodontics, and panoramic/ceph imaging
